Hybrid MOSFET balanced topology

Stereo Power Amplifier

Single 2 mm FR4 gold plated copper printed circuit board with limited internal wiring.

Follower of a succesful product line

ANTEOS

"In my world it is a rare thing to change my monitoring setup – as I’ve spent many years tweaking it. When I heard the new Holton amps though, I just knew I had to have them. They have one of the smoothest, deepest and widest sound stages I’ve heard in years, if ever."

William Bowden
Grammy Award winning
mastering engineer

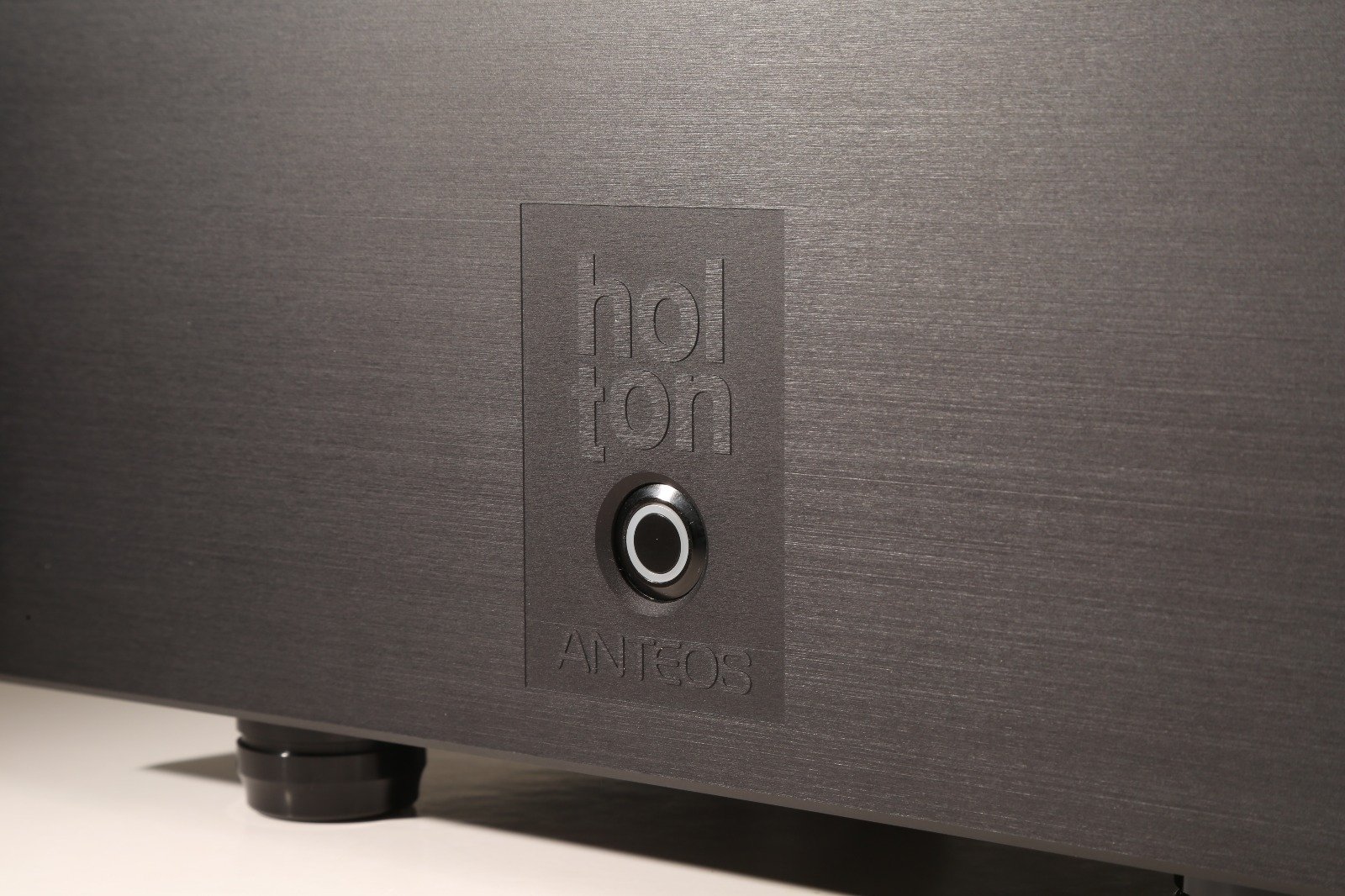

About ANTEOS Stereo Power Amplifier

Single 2 mm FR4 gold plated copper printed circuit board with limited internal wiring.

2 × 250 Watt dual die lateral MOSFETs per channel

DC offset regulator

Smart power controller with speaker protection

Regulated and isolated power supply

800 VA Custom designed encapsulated fully shielded placed on a patented anti-vibration mezzanine

10 mm aerospace grade aluminium alloy chassis with triple noise isolation system for full noise cancellation

12V trigger

Designed and produced in Australia and Switzerland

Technical Specifications

Power rating per channel

150 W RMS into 8 Ohm
260 W RMS into 4 Ohm

Frequency response

1.5 Hz to 200 kHz -3 dB

Signal to Noise Ratio

-110 dB Unweighted

Gain

33 dB

Input Impedance

40 kOhm

Input sensitivity

1.5 V RMS

Damping Factor

100 Hz 8 Ohm = 800

Filtering

96.000 uF

Connectors

ETI Research, Neutrik, Schaffner and EAO

Outside Dimensions

W 300 mm x H 250 mm x D 250 mm
(including feet and connectors)

Weight

22 kg

Product specifications and prices are subject to change without notice.
